Final Verdict: A Board for Anyone Who Wants to “Finish AM5” Properly – the MSI MPG X870E Carbon WIFI
The MSI MPG X870E Carbon WIFI is one of those motherboards that doesn’t fall into the category of “I bought it because it was on sale.” This is for people who deliberately invest in an AM5 system, know what they’re doing, and expect the platform to handle multiple CPU generations, piles of SSDs, and every piece of hardware they might throw at it in the next few years.
Paired with the Ryzen 9 9900X, 64 GB of DDR5-6000, a fast PCIe 4.0 NVMe drive and the RX 6800 XT, the Carbon WIFI shows what direction it is built for: a high-end all-rounder that works equally well as a gaming foundation or as a workstation backbone. The 18+2+1 phase VRM with 110A Smart Power Stages, the X870E platform with PCIe 5.0, four M.2 slots (two of them PCIe 5.0), plus Wi-Fi 7, 5G/2.5G LAN and USB4, all match where AM5 becomes exciting in 2025: in I/O and long-term platform stability.
To put it more casually: The Carbon WIFI is the kind of board that, once installed, just works — and makes you think: “Alright, I can upgrade other things for the next few years without touching the motherboard again.”

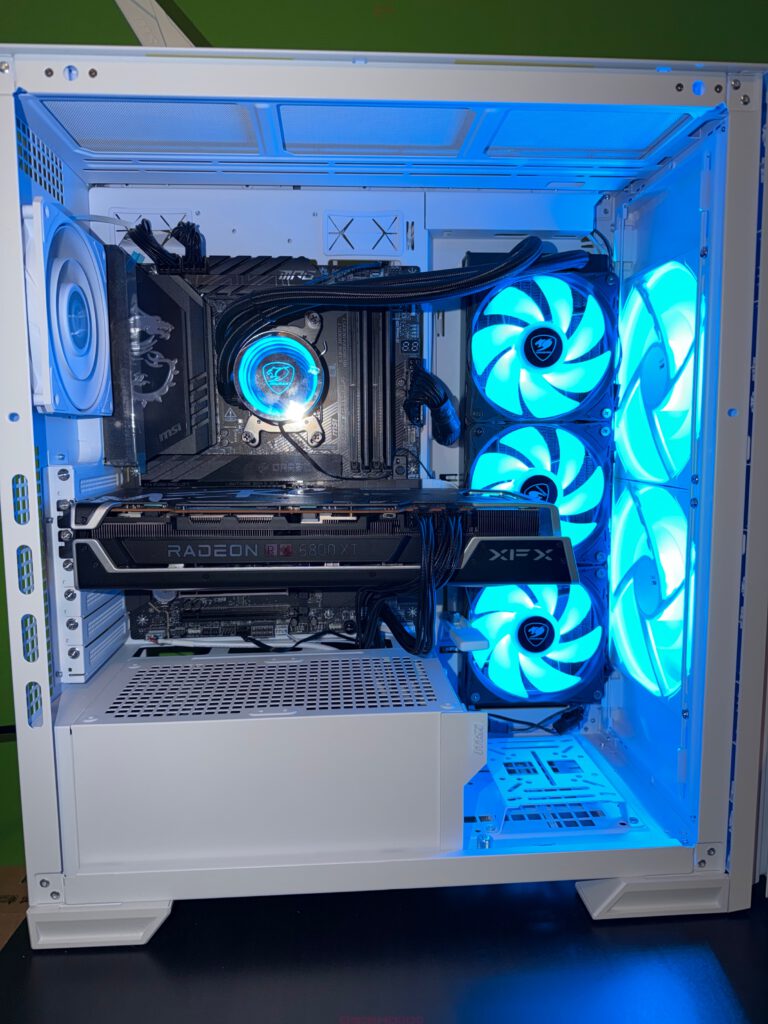

Test System Used
| Hardware | Manufacturer / Model |
|---|---|
| Mainboard | MPG X870E Carbon WIFI |
| CPU | Ryzen9 9900x |
| RAM | Crucial Pro DDR5 RAM 64 GB Kit (4×16) 6000MHz |
| SSD | Kingston 2TB PCIE4 NVME m.2 SSD |
| CPU Cooler | Cougar 60 All-in-One3 |
| GFX Card | RX 6800 XT |
| Power Supply | MSI MPG A1000GS PCIE5 |
| Tower | MSI MPG Velox 300R Airflow |
| Display | LC-M27UFD |
| Keyboard | Dygma Defy |
| Mouse | Razer Viper V3 Pro |
| Mousepad | MSI True Gaming |
This setup isn’t budget, but it’s also not the kind of extreme enthusiast machine you only see at trade shows. It’s exactly the kind of machine where the Carbon WIFI feels at home: high-end without the unnecessary RGB circus, but with real substance under the hood.
Positioning Within the AM5 Ecosystem (2025)
AM5 is no longer the “new” platform — it’s the one many people plan their next five to seven years around. With X870E, AMD shifts the focus clearly toward I/O bandwidth, USB4 and PCIe 5.0 infrastructure. MSI positions the MPG X870E Carbon WIFI as upper mid-range to high-end — below the extreme MEG models, but distinctly above Tomahawk and Pro series.
What does that mean in practice?
- For current Ryzen 7000 and 9000 CPUs, the VRM is more than adequate — it’s built with headroom.
- PCIe 5.0 support is exactly where it matters: the GPU slot and two M.2 slots directly on the CPU.
- USB4 at 40 Gbit/s isn’t a marketing badge — it’s two fully functional Type-C ports on the rear I/O, plus a 20 Gbit/s Type-C for the front.
MSI does what enthusiasts have been asking for: not just slapping a new chipset on the board, but actually building out the platform so the next years of standards (Wi-Fi 7, USB4, PCIe 5.0 SSDs) are fully covered.
A reviewer summed it up well:
“The X870E Carbon feels like the board you wait for when you don’t want to buy a new motherboard every year.”
That statement fits the board’s character perfectly.
Performance & Stability: This Thing Stays Calm
The real question is: does the power delivery live up to its promise?
18+2+1 phases with 110A Smart Power Stages sound great on paper — but how does it behave with a Ryzen 9 9900X regularly pushing past the 200W envelope?
Short answer: it stays unbothered.
Under extended loads — rendering, long gaming sessions, synthetic stress tests — the board behaves like a good power supply: you don’t notice it. Voltages stay stable, no VRM-induced throttling, and temperatures remain very safe. External tests confirm VRM temps around 60–66 °C with proper airflow — excellent numbers for this class.
A small anecdote from the test bench:
On the very first boot with DDR5-6000 EXPO profiles, four DIMMs populated and multiple M.2 drives installed, the system simply… posted. No endless memory training, no debug code limbo. EXPO was applied, 64 GB ran stable from the start — something that felt like wishful thinking only a few years ago.
There’s a fitting quote from a forum:
“The best hardware is the kind you stop thinking about after installation.”
The Carbon WIFI fits that description extremely well.
Features & Future-Proofing: USB4, PCIe 5.0 and Wi-Fi 7 Done Properly
Look at the rear I/O and you’ll see something almost comical: it’s completely filled.
Nine USB-A ports with 10 Gbit/s, four Type-C ports — two of them USB4 — plus HDMI, audio, Clear-CMOS, BIOS Flashback, dual LAN and Wi-Fi antennas.
In practice, that translates to:
- USB-C monitors or docks can be connected directly.
- External NVMe enclosures and capture devices get real bandwidth.
- Legacy peripherals never fight over ports or hubs.
Storage-wise, MSI provides four M.2 slots:
- two PCIe 5.0 x4 (CPU),
- two PCIe 4.0 x4 (chipset).
For many users, that’s more than they’ll ever need — but it also means you could drop in a PCIe 5.0 SSD in three years without buying a new board.
Four SATA ports are the only real limitation. For classic multi-HDD workstation builds this is a downside, but for modern NVMe-heavy systems it’s acceptable.
Networking is equally strong:
Wi-Fi 7 (2.4 / 5 / 6 GHz), Bluetooth 5.4, 5G LAN and 2.5G LAN. Very few will use all three interfaces at once, but for segmented networks or redundancy it’s a genuine benefit.
There’s an IT saying that fits perfectly here:
“Bandwidth is like time — you only notice it’s missing when you suddenly need it.”
The Carbon WIFI makes sure that situation rarely happens.
Quality-of-Life Features: Small Things That Add Up
Most manufacturers advertise “DIY features,” but often it’s just a plastic thumbscrew.
On the Carbon WIFI, these features truly matter:
- Tool-less M.2 installation with EZ Clips
- EZ PCIe Release, which removes the GPU without prying around the slot
- Clear and readable headers
- Onboard Power/Reset buttons
- An LED On/Off switch (yes, some people eventually want peace instead of RGB pulsing)
A fun anecdote here:
If you’ve ever removed a heavy GPU like the RX 6800 XT, you know the fear of applying too much leverage near the PCIe slot. EZ Release removes that fear entirely — it’s a little quality-of-life feature that makes hardware swapping genuinely less stressful.
Weaknesses & Downsides: Not Perfect, But Honest
Even with all its strengths, the Carbon WIFI has a few caveats.
Price
Around €480 in the EU or ~$499 internationally — this is premium territory.
And yes: this is a motherboard that costs more than many complete budget systems.
This raises the valid question:
Does it make sense to pair it with a mid-range CPU?
Not really. The rule of thumb “your motherboard shouldn’t cost more than your CPU” does ring true here.
USB4: Powerful, but Probably Overkill (for Now)
USB4 is fantastic on paper, but the reality is that many gamers simply don’t have hardware to use its 40 Gbit/s bandwidth today.
In practice, you’re paying for future-proofing.
Only Four SATA Ports
For anyone planning a six- or eight-drive archive, this is limiting.
MSI clearly expects users to run NVMe instead of HDD arrays.
Rear I/O Is Crowded
Some reviewers mention that the micro-buttons are placed very close together.
Not a major issue, but worth noting — especially if you have larger fingers.
Who Should Buy It — And Who Shouldn’t
The MSI MPG X870E Carbon WIFI is not a universal recommendation.
It shines in certain scenarios and is excessive in others.
You should buy it if…
- you run a Ryzen 9 or plan multiple future CPU upgrades;
- you use several NVMe SSDs, ideally including PCIe 5.0 models;
- you genuinely benefit from USB4 (external SSDs, docks, capture hardware);
- you want extremely stable VRM performance with room for overclocking;
- you regularly build, modify or test hardware and appreciate MSI’s EZ features.
You should NOT buy it if…
- you use a mid-range CPU and only need 1–2 SSDs;
- you’re building a budget gaming system;
- you’re planning a multi-HDD NAS or workstation where SATA ports matter more than PCIe lanes.
There’s a quote from the PC community that fits well here:
“The best motherboard isn’t the one with the most features — it’s the one whose features you actually use.”
Value for Money: Expensive, But Makes Sense
At €450–500 you can call it expensive — but you can’t call it illogical.
You’re paying for:
- robust VRM engineering
- excellent I/O selection
- USB4
- Wi-Fi 7 and dual LAN
- four M.2 slots
- real building comfort
Compared to past high-end boards that easily crossed €600–700, the Carbon WIFI looks almost “reasonably priced” for what it delivers — if you need the feature set.
If you don’t, then yes, the value drops quickly.
But that’s not the board’s fault — that’s a matter of choosing the right class of hardware.
Personal Take: A Motherboard You Can Safely Forget About
At the end of a long test, what remains is the overall feeling.
With the Carbon WIFI, it’s unusually calm: confidence.
This board gives the impression that your AM5 foundation is sorted for years — without the nagging thought that some limitation might bite you later.
The combination of:
- strong VRM design
- powerful I/O
- PCIe 5.0 flexibility
- USB4
- Wi-Fi 7
- thoughtful DIY features
creates a motherboard that’s ideal for people who want to build once — and then focus on everything else.
Yes, the price stings.
Yes, some features are ahead of their time.
But it’s one of those rare cases where the package feels coherent enough that you accept the cost because the board does exactly what it promises.
A colleague once put it perfectly when he saw it installed in a system:
“This is one of those boards you install, love — and then hate the idea of ever removing again.”
Honestly, that’s one of the highest compliments a motherboard can get.
Transparency Note (as requested)
Transparency Notice (according to EU guidelines):
The MSI MPG X870E Carbon WIFI featured in this review was provided to us by MSI as a non-binding loan unit for testing purposes. This is not paid advertising.
MSI had no influence on the content, evaluation, or editorial independence of this article. All opinions expressed are based solely on our own hands-on experience.
We sincerely thank MSI for providing the motherboard and for their trust in dataholic.de.
